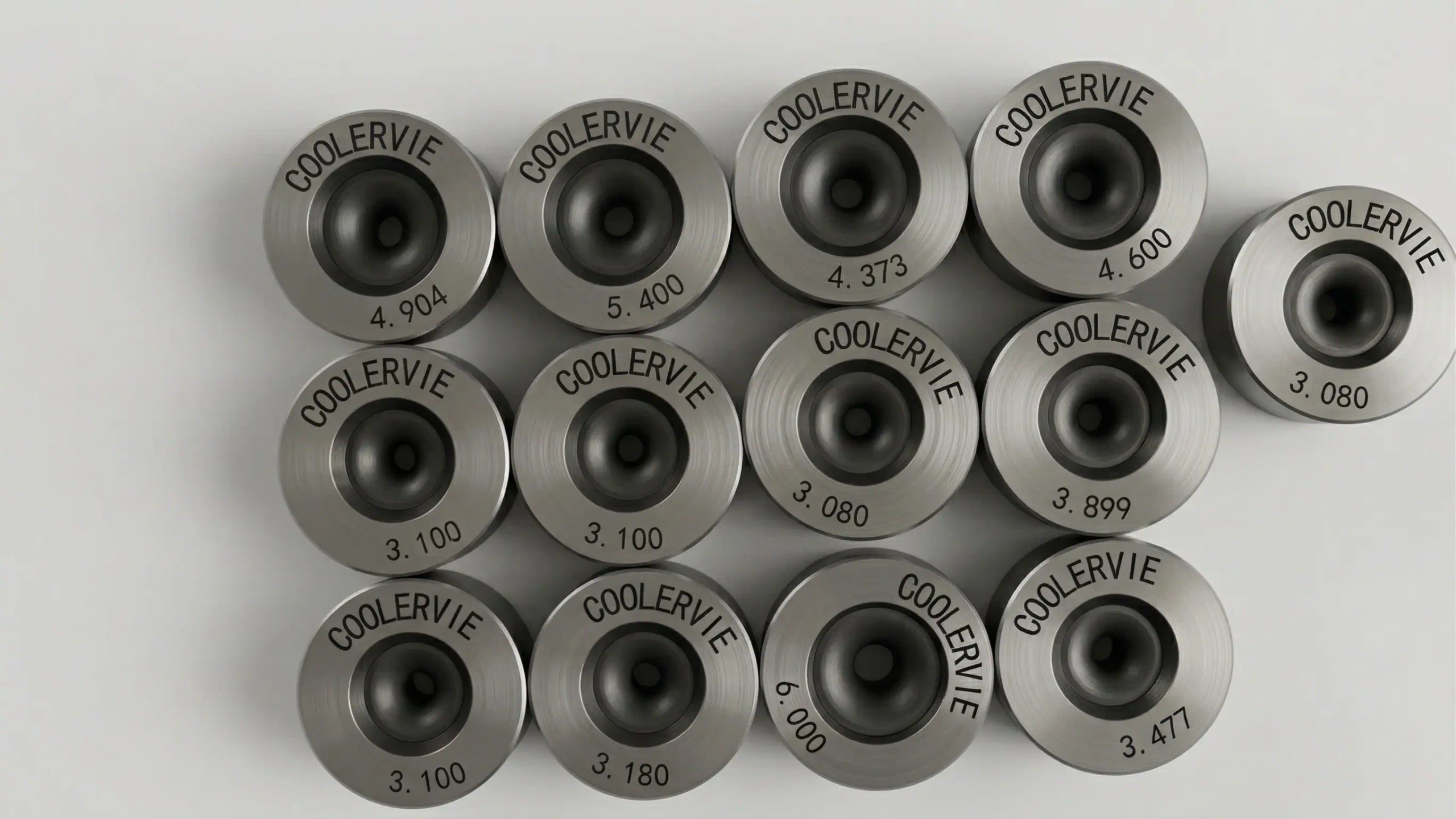

Nano Diamond Coated Wire Drawing Dies
Coolervie supplies nano diamond coated wire drawing dies for demanding wire and cable production applications. Combining a nanocrystalline diamond coating with a tungsten carbide substrate, these dies bring together a wear-resistant working surface and substrate toughness. They are designed for applications where tool wear, metal pickup, and consistent production performance are important considerations.
Nano diamond coated dies are used in cable stranding, bunching, compacting, and selected wire drawing applications. The appropriate die specification depends on the conductor material, wire or strand dimensions, required surface quality, and operating conditions. Contact Coolervie to discuss your application and request a quotation.
PRODUCT SPECIFICATIONS
Hole Sizes
Available hole diameters: 0.80 mm to 35 mm
Applications
Nano diamond coated dies are used in wire and cable manufacturing processes where wear resistance and reliable tooling performance are important. Typical applications include cable stranding, bunching and compacting, as well as selected drawing and shaving operations involving abrasive wire materials.
Depending on the die design and process requirements, these dies may also be considered for large-diameter wire drawing and selected tube-drawing applications. Die selection should account for the workpiece material, contact conditions, lubrication, dimensions, and required surface quality.
Typical Markets
Nano diamond coated dies serve a range of wire and cable manufacturing applications, including:
Copper and Aluminum Cable: Stranding, bunching, and compacting processes requiring consistent tooling performance.
Steel and Stainless Steel Wire: Selected dry-drawing operations where wear resistance and die specification are matched to the process.
Welding Wire and Tire Cord Wire: Drawing applications involving abrasive wire materials and demanding wear conditions.
Tube Drawing: Selected applications where the die configuration is compatible with the tube material, dimensions, and process requirements.
ADVANTAGES
Precision Die Geometry
Die geometry and critical dimensions are specified according to the intended application. Correct die selection, installation, alignment, and operating conditions help support consistent production performance.
Quality Inspection and Traceability
Each die is individually packaged and accompanied by a quality inspection certificate to support product identification and traceability.
Customized Die Solutions
Die specifications can be tailored to the required geometry, dimensions, and material requirements. Provide your technical drawing and process details so the application can be evaluated before ordering.
Availability and Delivery Support
Selected standard styles and sizes may be available from stock. Contact Coolervie to confirm current inventory, production lead time, and shipping arrangements for your order.
