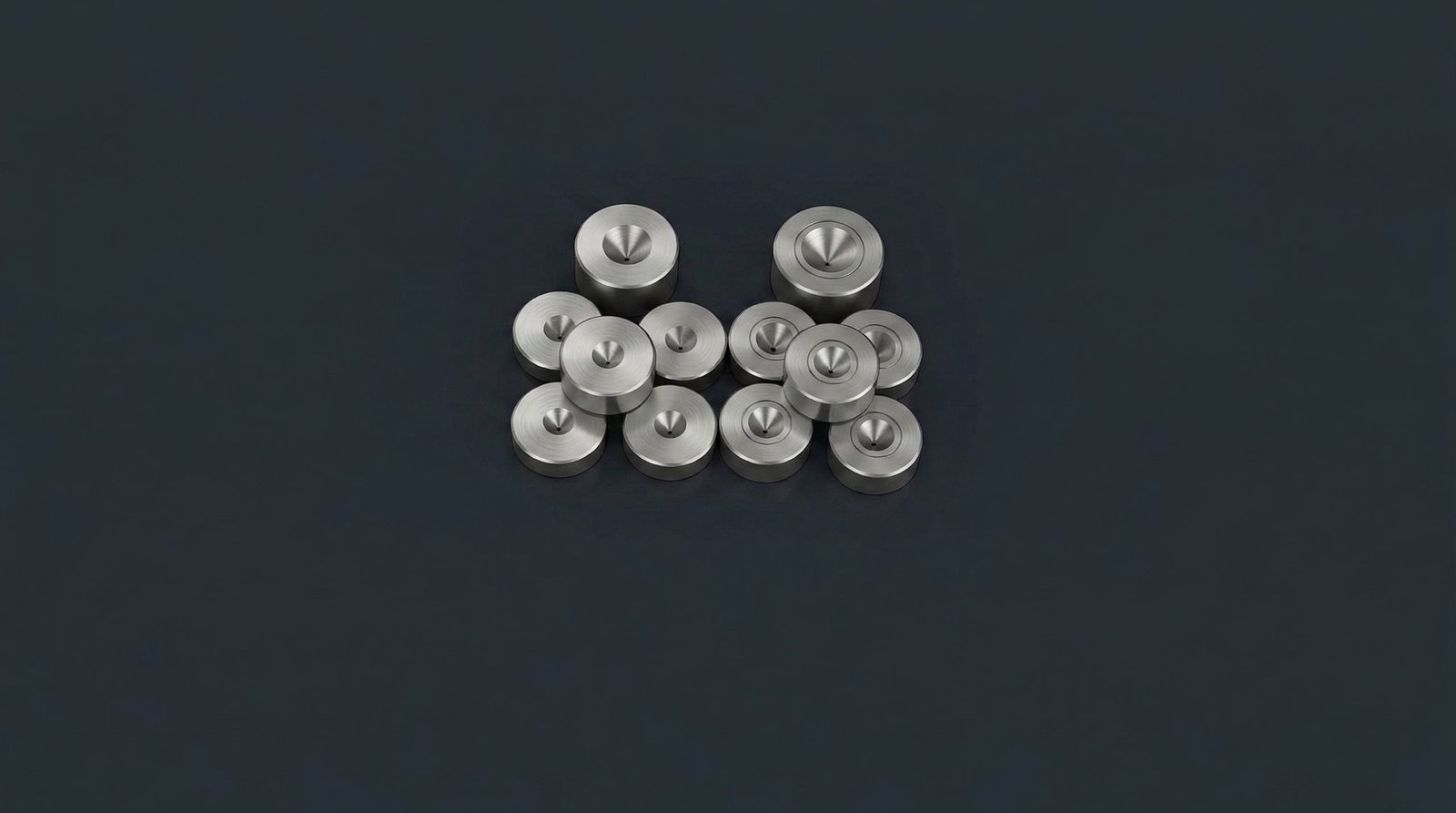

Semi-Finished Wire Drawing Dies
Coolervie supplies semi-finished wire drawing dies for wire manufacturers, die-making workshops, and die repair specialists that perform their own final die profiling. Available with polycrystalline diamond (PCD), synthetic single crystal diamond (SSCD), and natural diamond (ND) cores, these mounted blanks provide a prepared starting point for finishing the reduction cone, bearing, and final bore to suit your wire drawing requirements.
PRODUCT SPECIFICATIONS
Die Material
Die Casing Size
25 × 6 to 25 × 15 mm
28 × 8 to 28 × 14 mm
30 × 12 to 30 × 20 mm
40 × 20 mm
Custom casing sizes available on request.
Die Profile Parameters
Laser Size: 0.012–15 mm
Angle: 6°–28°
Bearing: Made to your specifications
Available dimensions depend on die material and blank size. Please confirm the applicable range for your required configuration.
ADVANTAGES
Pre-prepared die blanks with an initial bore and mounted core help reduce preliminary machining work. This gives your technicians a starting point for final profiling, reduction cone machining, bearing finishing, and bore sizing according to your production requirements.
PCD, SSCD, and ND cores are mounted within the casing using a controlled sintering process. Accurate core positioning supports consistent finishing and helps your technicians achieve the required internal die geometry.
Semi-finished dies allow qualified in-house teams to complete the final geometry to their own process requirements. By selecting the appropriate core material, casing size, and finishing parameters, die shops can manage tooling preparation with greater flexibility.
Looking for semi-finished wire drawing dies for your in-house finishing process? Send us your required core material, casing dimensions, target wire diameter, bore size, and technical drawing if available. Our team can review your requirements and help identify a suitable configuration.
